Wim 6
Wim 6
Supply
- Static white 500mA
- Dim warm 250mA
Power
- 4.5W
Photometrics
F446
15°
F447
24°
F448
36°
F449
60°
Color Temperature / Luminous flux
| 2400K | 434lm |
| 2700K | 553lm |
| 3000K | 579lm |
| 3500K | 586lm |
| 4000K | 579lm |
| DW | 383lm |

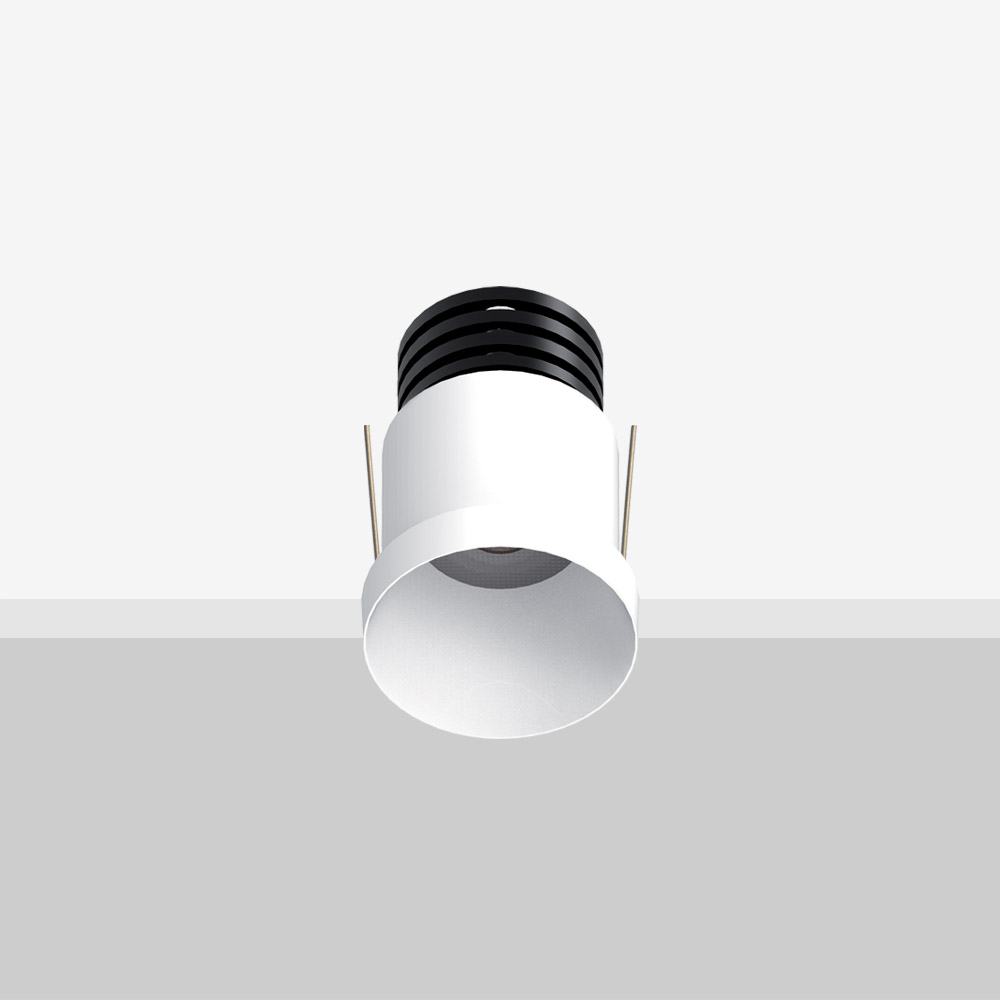

The Wim range is a semi-recessed downlight characterized by a minimalist aesthetic. The visual ergonomics of the trim design create an accent on the ceiling plane that defines the presence of the luminaire with maximum visual comfort delivered from ultra-deep recessed optics. With best-in-class TIR optical systems in a variety of angles and cutting-edge LED technology; the Wim range is an adaptable general and accent lighting downlight.
Code
Build your code by choosing each attribute
- WM6
- -
- -
- -
- Copy Code
- Wim 6
Finish
Beam angle
Cct
Accessories
AT064RO1045
Airtight recessed housing for insulated ceiling
IC064RO1045
Recessed housing for insulated ceiling
LH03
Low luminance hex louvre
MP-R045
Baseplate
RO1045
T-bar baseplate
Drivers
Code
Build your code by choosing each attribute
Finish
Beam angle
Cct
- WM6
- -
- -
- -
- Copy Code
- Wim 6
Accessories
AT064RO1045
Airtight recessed housing for insulated ceiling
IC064RO1045
Recessed housing for insulated ceiling
LH03
Low luminance hex louvre
MP-R045
Baseplate
RO1045
T-bar baseplate
