Wim 10

Supply

  • Static white 500mA
  • Dim warm 400mA
  • Tunable white 500mA

Power

  • 9W

Photometrics

F451

15°

F452

24°

F453

36°

F454

60°

Color Temperature / Luminous flux

2400K 770lm
2700K 1125lm
3000K 1180lm
3500K 1195lm
4000K 1178lm
DW 667lm
TW 875lm

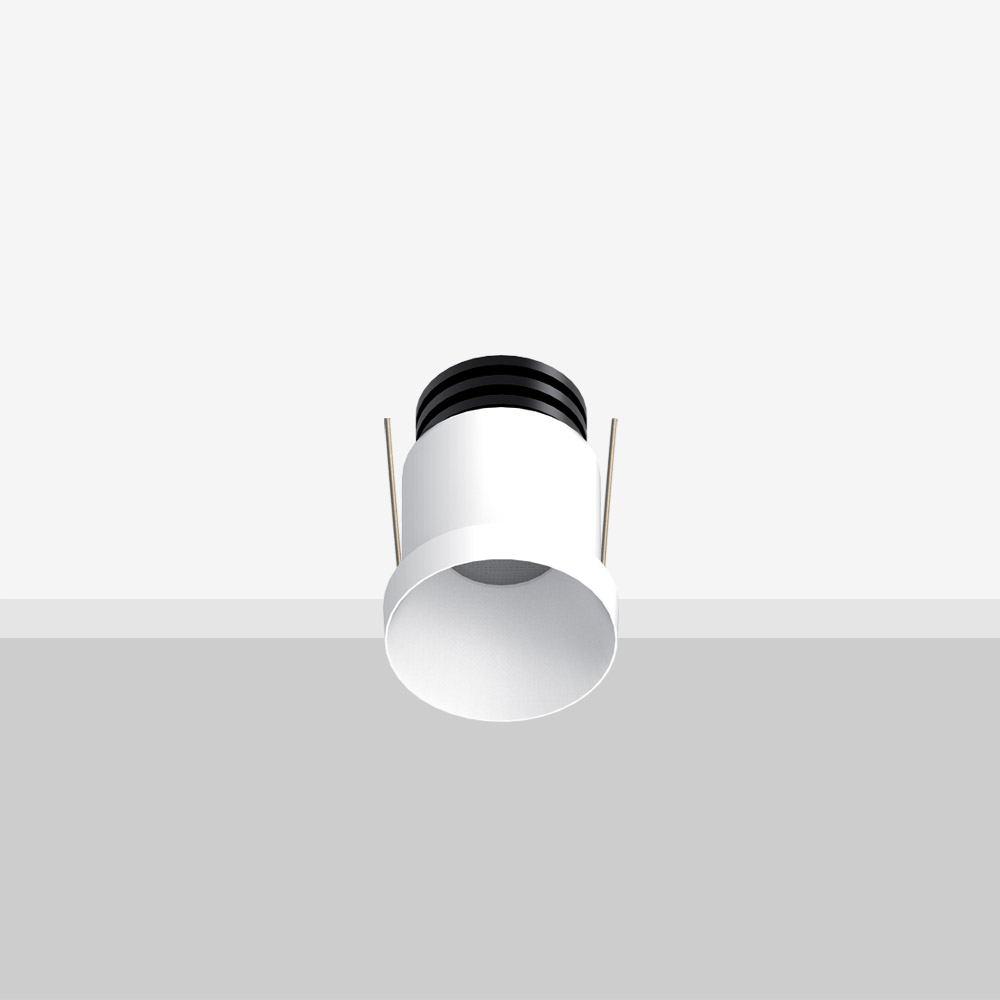

The Wim range is a semi-recessed downlight characterized by a minimalist aesthetic. The visual ergonomics of the trim design create an accent on the ceiling plane that defines the presence of the luminaire with maximum visual comfort delivered from ultra-deep recessed optics. With best-in-class TIR optical systems in a variety of angles and cutting-edge LED technology; the Wim range is an adaptable general and accent lighting downlight.

Code

Build your code by choosing each attribute

  • WM10
  • -
  • -
  • -
  • Copy Code
  • Wim 10

Finish

Beam angle

Cct

Accessories

AT064RO1055

Airtight recessed housing for insulated ceiling

IC064RO1055

Recessed housing for insulated ceiling

LH04

Low luminance hex louvre

MP-R055

Baseplate

RO1055

T-bar baseplate

Code X

Build your code by choosing each attribute

Finish

Beam angle

Cct

  • WM10
  • -
  • -
  • -
  • Copy Code
  • Wim 10

Accessories +

AT064RO1055

Airtight recessed housing for insulated ceiling

IC064RO1055

Recessed housing for insulated ceiling

LH04

Low luminance hex louvre

MP-R055

Baseplate

RO1055

T-bar baseplate

';
