Teddy S6
Teddy S6
Supply
- Static white 500mA
- Dim warm 250mA
Power
- 4.5W
Photometrics
F446
15°
F447
24°
F448
36°
F449
60°
Color Temperature / Luminous flux
| 2400K | 406lm |
| 2700K | 517lm |
| 3000K | 541lm |
| 3500K | 548lm |
| 4000K | 541lm |
| DW | 358lm |

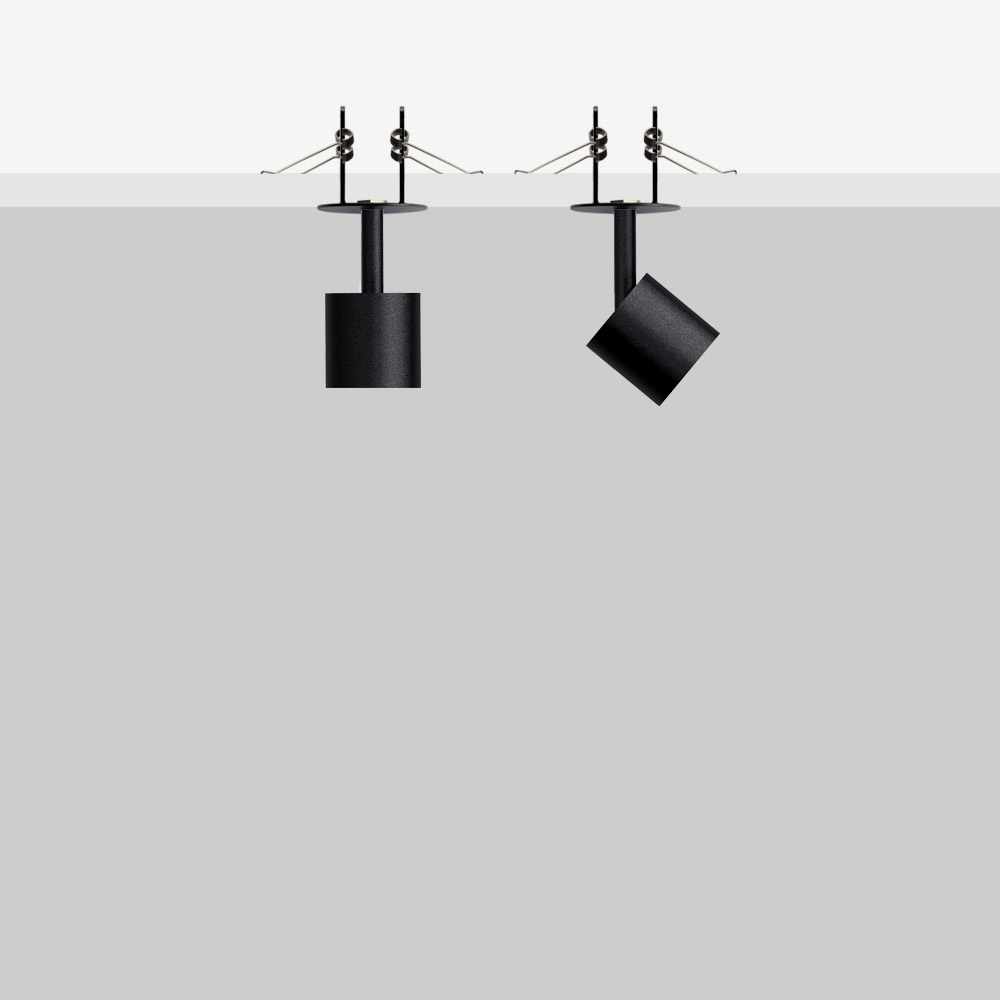

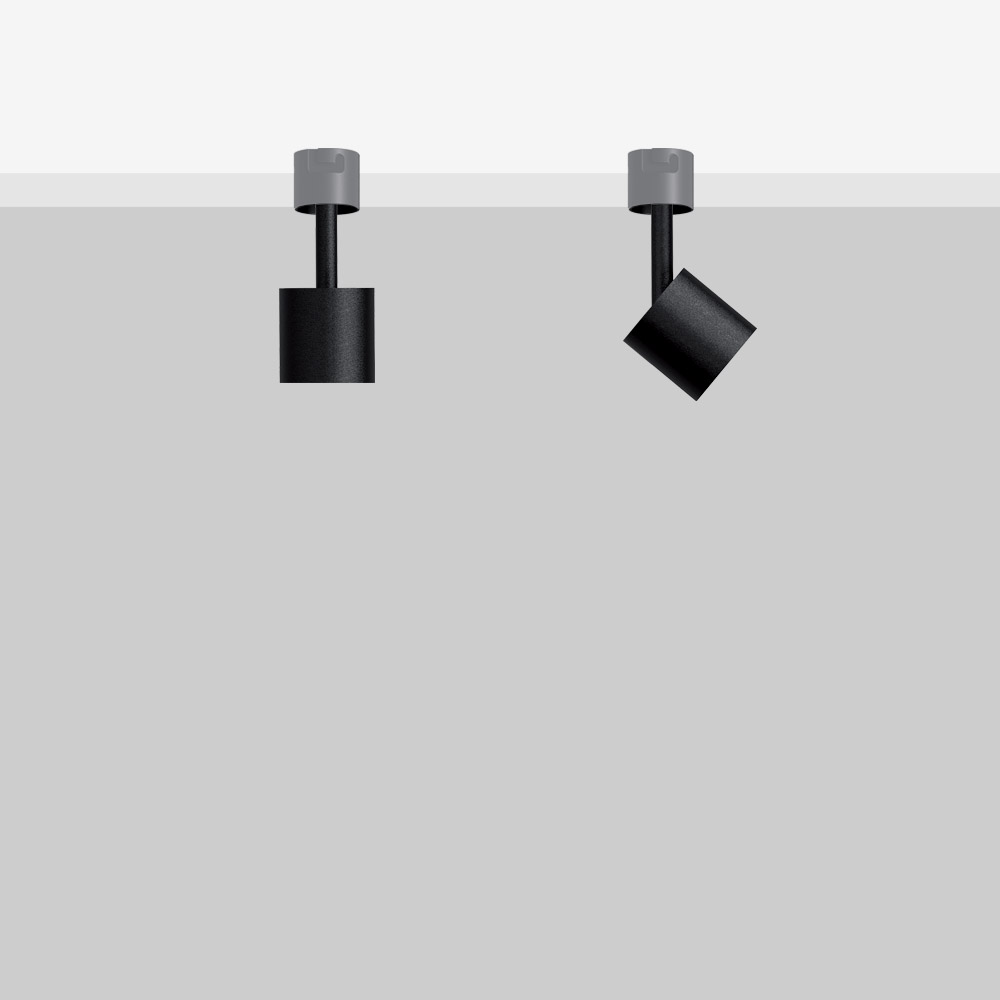

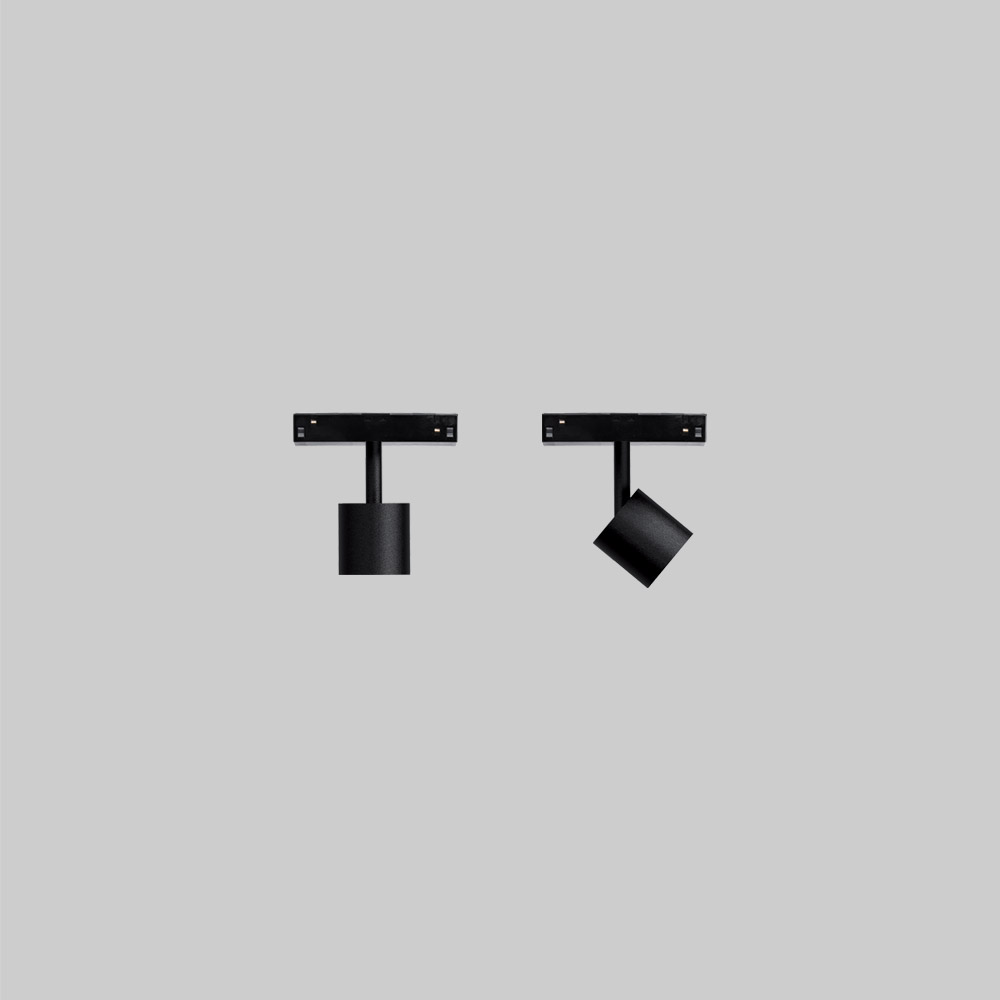

An adjustable projector designed for surface installations; featuring a minimalist design and superior optical performance. Ideal for both accent and general lighting applications. The Teddy range has field changeable optics and can hold up to two media accessories; including anti-glare filter and a customizable color corrective gel. Options for 50mm mini canopy or 105mm junction box canopy.
Code
Build your code by choosing each attribute
- TYS6
- -
- -
- -
- -
- Copy Code
- Teddy S6
Finish
Beam angle
Cct
Canopy
Accessories
LH03
Low luminance hex louvre
GEL35
Colour corrective poly gel for Teddy 6 range - consult with factory
OPT3515
Field changeable optic for Teddy 6 range - 15°
OPT3524
Field changeable optic for Teddy 6 range - 24°
OPT3536
Field changeable optic for Teddy 6 range - 36°
OPT3560
Field changeable optic for Teddy 6 range - 60°
Drivers
Code
Build your code by choosing each attribute
Finish
Beam angle
Cct
Canopy
- TYS6
- -
- -
- -
- -
- Copy Code
- Teddy S6
Accessories
LH03
Low luminance hex louvre
GEL35
Colour corrective poly gel for Teddy 6 range - consult with factory
OPT3515
Field changeable optic for Teddy 6 range - 15°
OPT3524
Field changeable optic for Teddy 6 range - 24°
OPT3536
Field changeable optic for Teddy 6 range - 36°
OPT3560
Field changeable optic for Teddy 6 range - 60°
