Nexus 6
Nexus 6
Supply
- Static white 500mA
- Dim warm 250mA
Power
- 4.5W
Photometrics
F446
15°
F447
24°
F448
36°
F449
60°
F450
120°
Color Temperature / Luminous flux
| 2400K | 434lm |
| 2700K | 553lm |
| 3000K | 579lm |
| 3500K | 586lm |
| 4000K | 579lm |
| DW | 383lm |

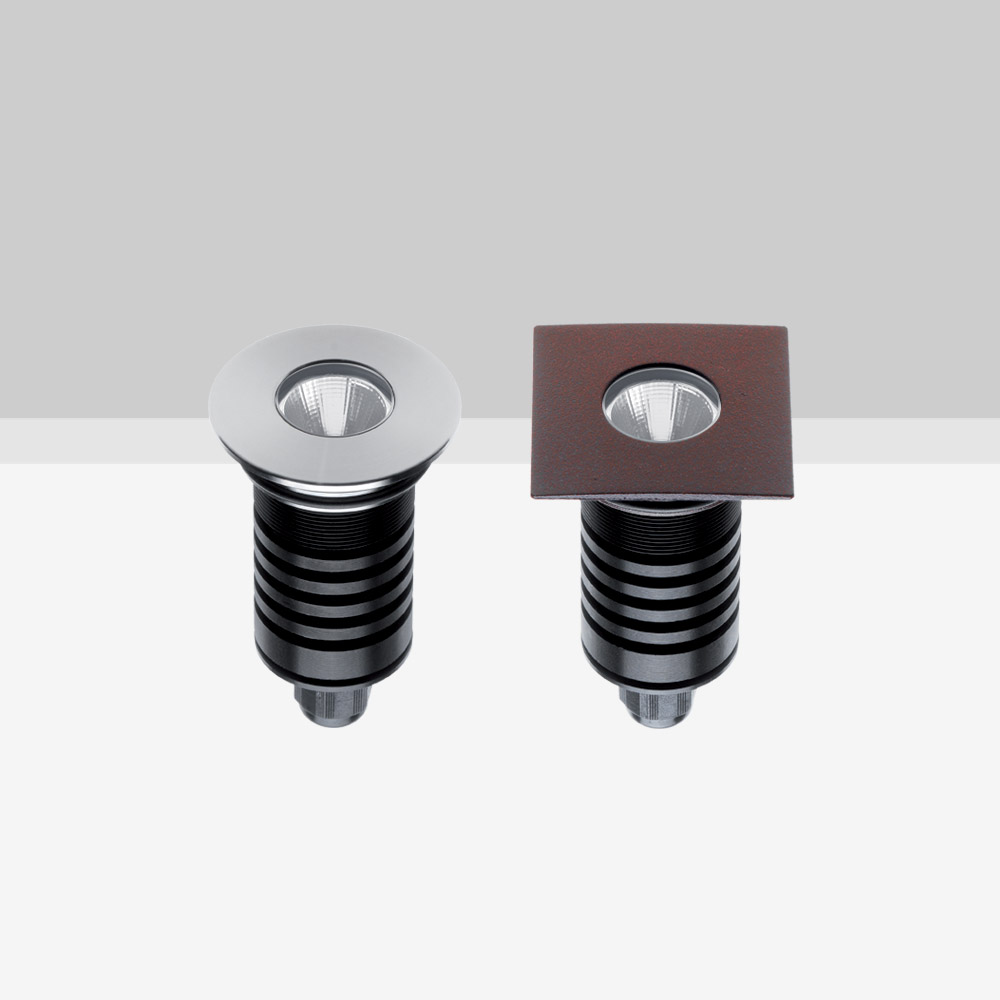

The Nexus range offers IP67 adjustable ground recessed luminaires of the highest quality construction; characterised by high luminous fluxes and precise; clean optics; able to offer narrow beam angles. The use of advanced waterproofing technologies guarantees total product reliability. The versions with anodised aluminium front with double powder coating are walk-over; the versions with AISI 316L stainless steel front are drive-over.
Code
Build your code by choosing each attribute
- NEX6
- -
- -
- -
- Copy Code
- Nexus 6
Finish
Beam angle
Cct
Accessories
CSXJ01
Recessing boot
CSXJ01.CP
Concrete pour housing for ingrade - 5x5x2 junction box
LH03
Low luminance hex louvre
Drivers
Code
Build your code by choosing each attribute
Finish
Beam angle
Cct
- NEX6
- -
- -
- -
- Copy Code
- Nexus 6
Accessories
CSXJ01
Recessing boot
CSXJ01.CP
Concrete pour housing for ingrade - 5x5x2 junction box
LH03
Low luminance hex louvre
